Best Practices for CNC Aluminum Fabrication in Modern Manufacturing

CNC aluminum fabrication has revolutionized modern manufacturing, offering precision, efficiency, and versatility in creating complex parts. To achieve optimal results, manufacturers must adhere to best practices that ensure high-quality aluminum CNC parts. These practices include proper material selection, tool optimization, and advanced programming techniques. By implementing these strategies, companies can maximize productivity, reduce waste, and produce superior aluminum components for various industries. Let's explore the key elements that contribute to successful CNC aluminum fabrication in today's competitive manufacturing landscape.

Optimizing CNC Machining Parameters for Aluminum

Selecting the Right Cutting Tools

Choosing the appropriate cutting tools is essential for achieving efficient and precise aluminum CNC machining. High-speed steel (HSS) and carbide tools are commonly used, with carbide offering superior hardness, wear resistance, and heat tolerance. For roughing operations, tools with fewer flutes help facilitate effective chip evacuation, preventing material buildup. Finishing cuts benefit from higher flute counts, producing smoother surfaces and improved dimensional accuracy. Additionally, coated tools can reduce friction, minimize heat generation, and extend tool life, particularly when working with challenging aluminum alloys or high-speed machining conditions.

Adjusting Cutting Speeds and Feed Rates

Aluminum’s favorable machinability allows for higher cutting speeds than many other metals, but optimal parameters for aluminum CNC parts depend on alloy type and specific operations. For roughing, cutting speeds generally range between 500 and 1000 meters per minute, while finishing operations can reach up to 1500 meters per minute. Feed rates typically vary from 0.1 to 0.3 mm per tooth, depending on tool geometry and workpiece properties. Carefully adjusting these parameters ensures minimal heat buildup, reduces tool wear, and produces high-quality surface finishes, allowing operators to balance efficiency with precision in aluminum CNC machining.

Managing Chip Control

Proper chip management is critical for consistent quality and safe aluminum CNC machining. Long, stringy chips can wrap around the tool, leading to surface defects, tool damage, or unexpected downtime. Techniques such as peck drilling, optimized tool paths, and high-pressure coolant systems help produce smaller, manageable chips. Adjusting cutting parameters and employing chip-breaking strategies further enhances control. Regular inspection and removal of chips during machining maintain stable cutting conditions, protect tools, and improve surface finish, ensuring that aluminum components are produced accurately, efficiently, and reliably in high-volume or precision applications.

Enhancing Surface Finish and Dimensional Accuracy

Implementing Proper Workholding Techniques

Secure workholding is critical for achieving tight tolerances and superior surface finish in aluminum CNC parts. Use dedicated fixtures or vacuum tables to minimize vibration and prevent workpiece movement during machining. For complex geometries, consider custom fixturing solutions that support the part without interfering with tool paths. Ensure even clamping pressure to avoid distortion, especially when working with thin-walled aluminum components.

Optimizing Toolpath Strategies

Advanced toolpath strategies can significantly improve surface quality and reduce machining time. Employ trochoidal milling for efficient material removal in pocketing operations. Utilize high-speed machining (HSM) techniques, such as constant engagement toolpaths, to maintain consistent cutting forces and minimize tool deflection. For finishing operations, consider 3D surfacing strategies that optimize tool orientation and minimize step-over to achieve superior surface finishes on aluminum parts.

Utilizing Coolant and Lubrication Effectively

Proper coolant application is essential for temperature control and chip evacuation in aluminum CNC machining. Use high-pressure coolant systems to improve chip breaking and evacuation, particularly in deep-hole drilling operations. Consider minimum quantity lubrication (MQL) techniques for environmentally friendly machining. Experiment with different coolant formulations to find the optimal balance between cooling, lubrication, and corrosion protection for your specific aluminum alloy and machining processes.

Advanced Techniques for Complex Aluminum Parts

Leveraging Multi-Axis Machining Capabilities

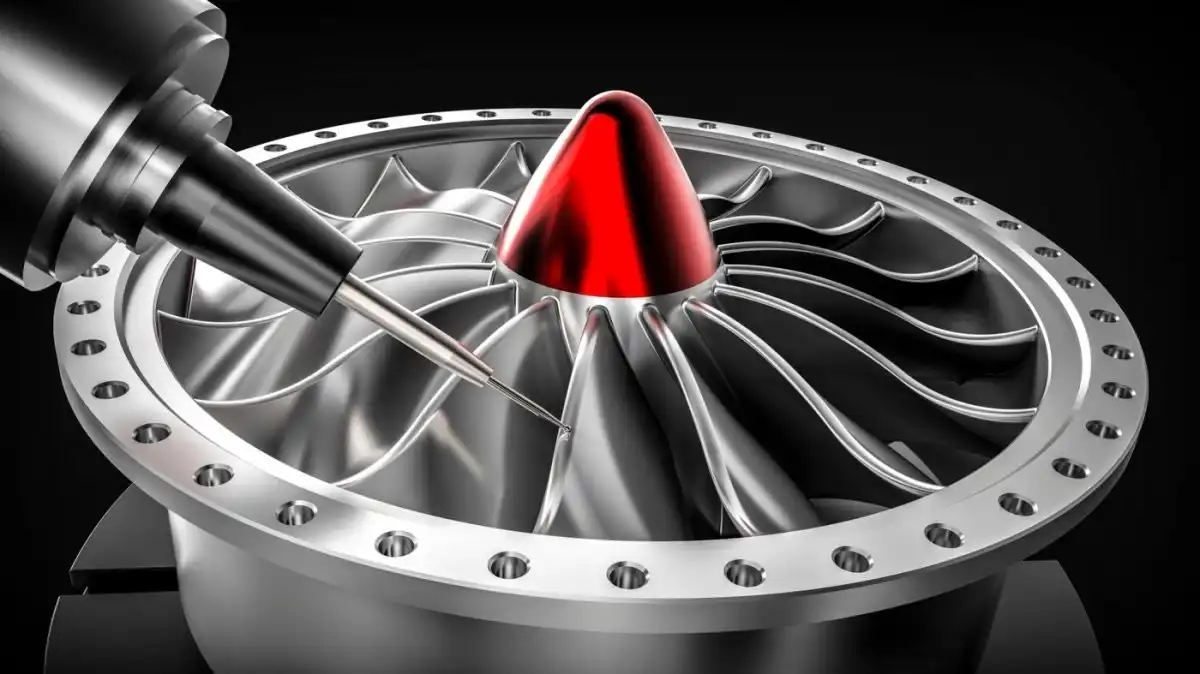

Multi-axis CNC machines offer enhanced flexibility and efficiency in producing complex aluminum parts. 5-axis machining allows for reduced setup time and improved accuracy by minimizing the number of part reorientations. Utilize simultaneous 5-axis machining for intricate contours and undercuts, achieving smoother surfaces and reducing cycle times. Implement rotary indexing for efficient production of parts with features on multiple faces, maximizing machine utilization and part quality.

Implementing Adaptive Machining Strategies

Adaptive machining techniques optimize tool engagement and cutting conditions in real-time for aluminum CNC parts. Employ dynamic tool path generation that adjusts based on the current state of the workpiece, ensuring consistent chip loads and reducing tool wear. Utilize in-process measurement and feedback systems to compensate for thermal expansion and tool deflection, maintaining tight tolerances throughout the machining process. These advanced strategies are particularly beneficial for high-precision aluminum components in aerospace and medical industries.

Exploring Hybrid Manufacturing Approaches

Combining CNC machining with other manufacturing processes can yield innovative solutions for complex aluminum parts. Consider integrating additive manufacturing techniques to create near-net-shape preforms, reducing material waste and machining time. Explore the potential of friction stir welding in conjunction with CNC machining for creating large, complex aluminum structures with superior mechanical properties. These hybrid approaches open new possibilities for designing and producing lightweight, high-performance aluminum components.

Conclusion

Mastering CNC aluminum fabrication requires a combination of traditional best practices and cutting-edge techniques. By optimizing machining parameters, enhancing surface finish and accuracy, and leveraging advanced manufacturing strategies, companies can produce high-quality aluminum CNC parts efficiently and cost-effectively. As technology continues to evolve, staying informed about the latest developments in CNC machining will be crucial for maintaining a competitive edge in the rapidly advancing field of modern manufacturing.

FAQs

What are the main advantages of CNC aluminum fabrication?

CNC aluminum fabrication offers precision, repeatability, and efficiency in producing complex parts. It allows for quick turnaround times, high accuracy, and the ability to work with a wide range of aluminum alloys.

How does coolant selection affect aluminum CNC machining?

Proper coolant selection is crucial for temperature control, chip evacuation, and surface finish. It helps prevent built-up edge formation and extends tool life, ultimately improving the overall quality of aluminum CNC parts.

Can CNC aluminum fabrication be used for prototyping?

Yes, CNC machining is excellent for prototyping aluminum parts. It offers quick turnaround times, high accuracy, and the ability to produce functional prototypes with the same material properties as the final product.
