Precision CNC Machining: Best Practices for Aluminum Alloys

Precision CNC machining of aluminum alloys requires a careful balance of speed, accuracy, and surface finish. By leveraging advanced CNC technology and optimizing machining parameters, manufacturers can achieve exceptional results when working with these versatile materials. This article explores key best practices for CNC machining aluminum alloys, covering tooling selection, cutting strategies, and process optimization techniques. Whether you're producing aerospace components, automotive parts, or precision prototypes, mastering these practices will help you maximize efficiency, quality, and cost-effectiveness in your CNC machining operations.

Optimizing Cutting Parameters for Aluminum Alloys

Selecting the Right Cutting Speed

When CNC machining aluminum alloys, choosing the appropriate cutting speed is crucial for achieving optimal results. Unlike harder metals, aluminum allows for higher cutting speeds due to its softer nature. Generally, cutting speeds for aluminum alloys can range from 500 to 1000 surface feet per minute (SFM), depending on the specific alloy and machining operation. However, it's essential to consider factors such as tool material, coolant usage, and machine capabilities when determining the ideal cutting speed for your application.

Feed Rate Considerations

Feed rate plays a significant role in the surface finish and tool life when machining aluminum alloys. Higher feed rates can increase productivity but may compromise surface quality. For roughing operations, aggressive feed rates can be employed to remove material quickly. However, for finishing passes, reducing the feed rate helps achieve smoother surfaces and tighter tolerances. It's crucial to find the right balance between productivity and surface quality based on your specific requirements.

Depth of Cut Optimization

The depth of cut affects both material removal rates and cutting forces during CNC machining. For aluminum alloys, relatively deep cuts can be taken due to the material's low cutting resistance. However, it's important to consider the rigidity of your setup and the capabilities of your cutting tools. In general, a depth of cut ranging from 0.030 to 0.250 inches can be used for roughing operations, while finishing passes typically utilize shallower cuts for improved accuracy and surface finish.

Tooling Strategies for Efficient Aluminum Machining

Selecting the Ideal Tool Geometry

When machining aluminum alloys, tool geometry plays a crucial role in chip formation and evacuation. High positive rake angles help reduce cutting forces and prevent built-up edge formation. For milling operations, tools with fewer flutes (typically 2-3) allow for better chip clearance and reduce the risk of chip recutting. Additionally, polished flutes can improve chip evacuation and reduce tool wear, especially in deep pocket milling applications.

Choosing the Right Tool Material

While high-speed steel (HSS) tools can be used for machining aluminum, carbide tools offer superior performance and longer tool life. Uncoated carbide tools are often preferred for aluminum machining due to their sharp cutting edges and excellent thermal conductivity. In some cases, diamond-coated or polycrystalline diamond (PCD) tools may be justified for high-volume production or when working with abrasive aluminum alloys containing high silicon content.

Implementing Tool Holding Best Practices

Proper tool holding is essential for achieving precision and minimizing vibration during CNC machining. For aluminum alloys, hydraulic or shrink-fit tool holders provide excellent runout control and rigidity. When using collet chucks, ensure they are clean and free from debris to maintain accuracy. Additionally, consider using balanced tool assemblies, especially for high-speed machining operations, to reduce vibration and improve surface finish quality.

Advanced Techniques for Precision Aluminum Machining

High-Speed Machining (HSM) Strategies

High-speed machining techniques can significantly boost productivity when working with aluminum alloys. By utilizing higher spindle speeds and optimized toolpaths, HSM allows for increased material removal rates while maintaining or even improving surface finish quality. Trochoidal milling, for instance, is an effective HSM strategy for aluminum that reduces tool engagement and allows for higher feed rates. When implementing HSM, ensure your machine tool has adequate spindle power, acceleration capabilities, and sufficient coolant delivery to support these advanced cutting techniques.

Coolant and Lubrication Optimization

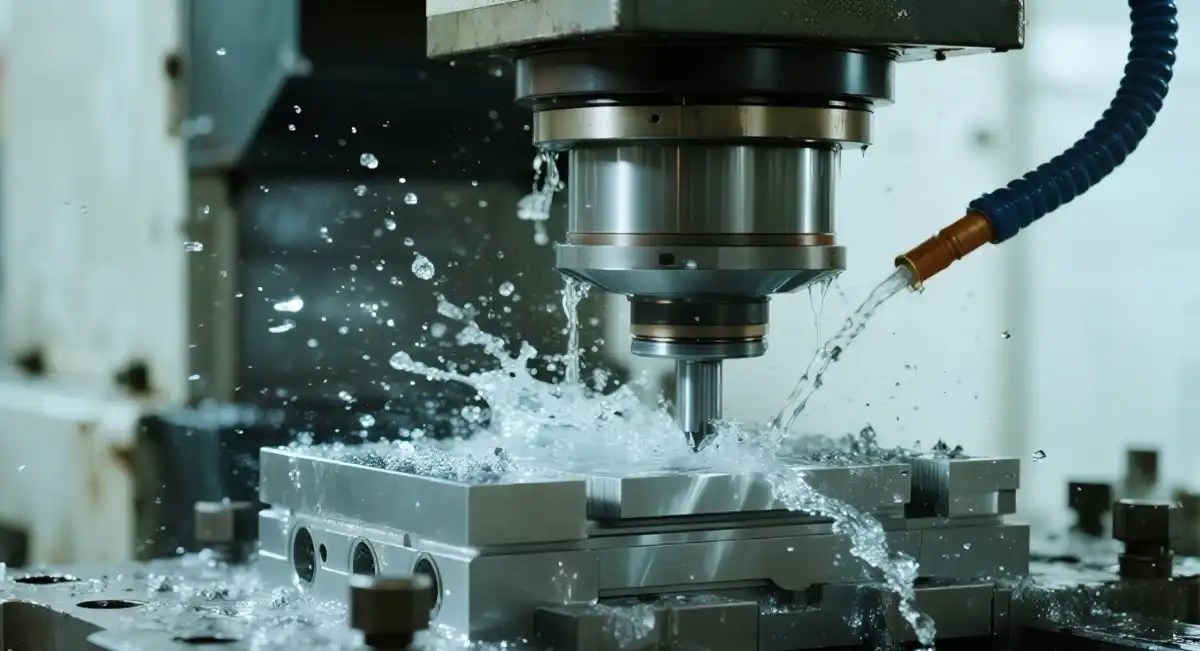

Effective coolant management is crucial for successful CNC machining of aluminum. Abundant coolant flow helps prevent chip recutting, reduces thermal distortion, and extends tool life. For most aluminum alloys, water-soluble coolants or straight oils work well. High-pressure coolant delivery systems can improve chip evacuation in deep pocket milling or drilling operations. Additionally, minimum quantity lubrication (MQL) techniques can be effective for certain aluminum machining applications, offering improved chip clearance and reduced environmental impact compared to flood coolant systems.

Workholding and Fixturing Considerations

Proper workholding is essential for achieving tight tolerances and preventing workpiece deformation during machining. When fixturing aluminum parts, consider using dedicated workholding solutions that distribute clamping forces evenly to minimize distortion. Vacuum chucks can be effective for thin-walled components, while soft jaws or custom fixtures may be necessary for complex geometries. To prevent marring or imprinting on finished surfaces, use protective materials such as rubber or plastic between the workpiece and clamping elements.

Conclusion

Mastering precision CNC machining for aluminum alloys requires a comprehensive approach that combines optimized cutting parameters, appropriate tooling strategies, and advanced machining techniques. By implementing these best practices, manufacturers can achieve superior surface finishes, tighter tolerances, and improved productivity in their aluminum machining operations. As CNC technology continues to evolve, staying informed about the latest advancements and continually refining your processes will ensure you remain at the forefront of precision aluminum machining.

FAQs

What are the most common aluminum alloys used in CNC machining?

The most frequently used aluminum alloys in CNC machining include 6061, 7075, and 5052. 6061 is known for its excellent machinability and corrosion resistance, 7075 offers high strength-to-weight ratio, and 5052 is valued for its good formability and weldability.

How can I prevent built-up edge when machining aluminum?

To prevent built-up edge, use sharp cutting tools with positive rake angles, maintain proper cutting speeds and feed rates, and ensure adequate coolant flow. Using tools with polished flutes and implementing high-speed machining techniques can also help reduce built-up edge formation.
