Can DFM Be Applied to Additive Manufacturing?

Indeed, additive manufacturing may effectively implement Design for Manufacturing (DFM), but doing so calls for a significant change in conventional design thinking. Although additive manufacturing presents new possibilities and problems that call for specific design considerations, traditional DFM concepts were created for subtractive and formative manufacturing techniques. While creating new opportunities for complex geometries, the layer-by-layer nature of 3D printing technologies such as Selective Laser Sintering, Fused Deposition Modeling, and Stereolithography presents clear limitations regarding support structures, material properties, and post-processing requirements.

Understanding the Fundamentals of DFM and Additive Manufacturing

For a long time, design for manufacturing has acted as a link between creative product ideas and realistic production constraints. Conventional DFM concepts emphasize design simplification to minimize material waste, simplify manufacturing, and increase production efficiency. These rules were mainly created for traditional manufacturing processes including casting, injection molding, and machining.

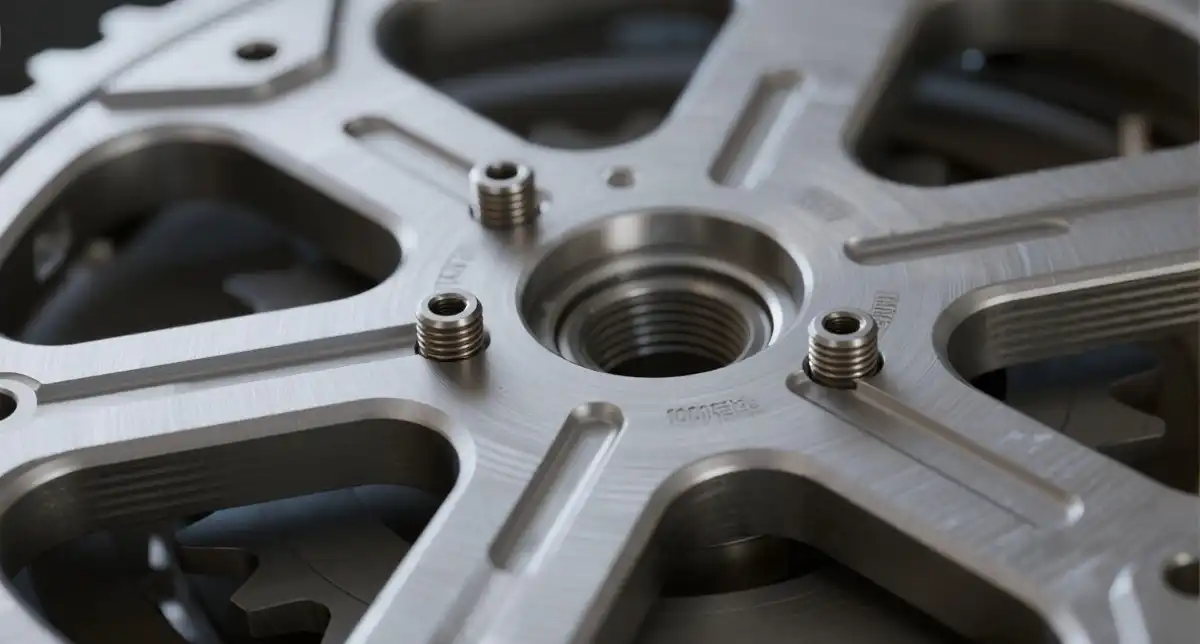

Redefining DFM for Layer-by-Layer Production

Design optimization is radically altered by additive manufacturing. In contrast to subtractive manufacturing, where design limitations are determined by material removal, 3D printing uses digital data to create items layer by layer. This procedure introduces new considerations while doing away with many of the old restrictions.

The fundamental ideas of DFM must change to take into account the distinctive features of different additive technologies. Fused Deposition Modeling methods, which are routinely used for polymer prototypes in consumer electronics, need distinct design concerns than Powder Bed Fusion procedures, which are frequently utilized for metal components in aerospace and medical applications.

Material Diversity and Design Implications

A wide variety of materials are used in modern 3D printing, ranging from metal alloys and engineering-grade thermoplastics to biocompatible polymers and ceramic composites. Every kind of material has unique qualities that affect design choices. While polymer printing concentrates on layer adhesion and surface finish quality, metal printing often necessitates taking heat stress and support removal into account.

Engineers may optimize designs for their desired manufacturing process by comprehending these material-specific criteria. The capacity to produce functionally-graded materials, in which a single component has several qualities, brings up previously unheard-of design options that were never addressed by standard DFM.

Key Considerations When Applying DFM to Additive Manufacturing

A number of crucial elements that directly affect manufacturability, cost, and component quality must be carefully considered in order to successfully integrate DFM concepts with 3D printing.

Geometry Optimization and Support Structures

Unlike standard machining procedures, layer-based manufacturing presents special geometric concerns. Support structures are usually needed for overhanging elements that are more than 45 degrees in angle, which adds to the amount of material used and the amount of time spent post-processing. These supports may be reduced or eliminated with wise design decisions, which lowers finishing needs and manufacturing costs.

Optimizing wall thickness is essential to the success of additive manufacturing. Even though 3D printing may produce very thin features, knowing how layer orientation impacts mechanical qualities is necessary to retain sufficient strength. In addition to ensuring homogeneous material distribution, designing with constant wall thicknesses lowers the possibility of weak spots or failure zones.

Material Selection and Process Parameters

The quality of the finished product and production efficiency are greatly impacted by the interaction between material selection and manufacturing factors. Sintering quality and dimensional accuracy are directly impacted by the properties of metal powder, such as particle size distribution and chemical composition. Layer adhesion and heat control during printing are also impacted by the characteristics of polymer filaments.

Both material utilization and mechanical qualities are impacted by build orientation. Superior strength qualities are usually shown by parts that are printed with load-bearing directions aligned with layer deposition. Engineers may optimize designs for certain performance objectives while preserving manufacturability by comprehending these linkages.

Post-Processing Integration

In contrast to conventional manufacturing, where finishing processes are often taken into account separately, additive manufacturing DFM has to take post-processing requirements into account from the very beginning of the design process. Design choices are influenced by surface finishing specifications, support removal accessibility, and heat treatment factors.

Finishing time and expenses may be greatly decreased by designing parts with easily accessible interior channels for the removal of support material. In a similar vein, adding capabilities that enable automated post-processing processes enhances total production uniformity and efficiency.

Case Studies: Successful Application of DFM in Additive Manufacturing

The potential and usefulness of this integrated approach are shown by real-world examples, which highlight the observable advantages of applying DFM concepts to 3D printing across a range of sectors.

Aerospace Component Optimization

The transformational potential of the technology is shown by Boeing's use of DFM-guided additive manufacturing for titanium airplane components. Using topology optimization concepts, engineers were able to rebuild conventional bracket assemblies and achieve weight savings of over 40% without compromising structural integrity. Combining many machined parts into a single printed component lowered the need for assembly and decreased the number of possible failure spots.

These aerospace uses show how DFM concepts modified for metal 3D printing may expedite production, enhance performance, and decrease weight all at once. Design flexibility that is not achievable with traditional production techniques is provided by the capacity to develop intricate lattice

Automotive Rapid Prototyping Excellence

Prominent automakers have effectively used DFM-optimized additive manufacturing for low-volume production and prototype uses. Selective laser sintering engine component housings demonstrate how careful design consideration allows complicated shapes to be functionally tested in much shorter development times.

The capacity of additive manufacturing to produce parts with varying wall thicknesses and integrated fastening elements is very advantageous to the automobile industry. These DFM-guided design optimizations preserve the structural criteria required for automotive applications while reducing assembly complexity.

Medical Device Innovation

Perhaps the most interesting use of DFM concepts in additive manufacturing is in customized titanium implants. Manufacturers of medical devices use 3D printing to produce patient-specific geometries while guaranteeing that mechanical performance and biocompatibility standards are fulfilled.

The incorporation of porous structures intended for osseointegration shows how DFM considerations go beyond conventional manufacturing issues to include biological functions. Surface polish, material purity, and sterilization compatibility are all important considerations for these applications, and they must all be taken into account in the early stages of design.

Integrating DFM and AM into Your Procurement Strategy

In order to use DFM-optimized additive manufacturing, procurement experts must create thorough assessment frameworks that take into account both technical capabilities and commercial factors.

Supplier Evaluation Criteria

Procurement teams should give preference to vendors that have proven DFM experience and collaborative design support capabilities when choosing additive manufacturing partners. Consistent outcomes and manufacturing traceability are guaranteed by quality management systems tailored for 3D printing procedures.

Verification of dimensional correctness, post-processing uniformity, and material certification procedures should all be part of the technical capabilities evaluation. Before production starts, suppliers with integrated design optimization tools and simulation skills may assist detect possible manufacturing issues and provide essential support throughout the development process.

Cost Optimization Through Total Ownership Analysis

Additive manufacturing with DFM optimization often offers cost benefits that go beyond initial production costs. Shorter lead times, less tooling, and more flexible design may all have a big influence on the overall cost of a project. The capacity of suppliers to optimize designs for production efficiency while upholding quality requirements should be the basis for procurement specialists' evaluations.

Better decision-making throughout the sourcing process is made possible by an understanding of the connection between manufacturing costs and design complexity. Suppliers that are able to provide clear cost analyses and suggestions for design optimization exhibit the teamwork required for a successful DFM integration.

Risk Management and Quality Assurance

The special quality requirements of additive manufacturing must be taken into account in procurement strategies. Consistent outcomes and regulatory compliance are guaranteed by material traceability, process parameter documentation, and inspection procedures created especially for 3D printed components.

When exchanging comprehensive design files with industrial partners, intellectual property protection becomes more crucial. While fostering fruitful cooperation, establishing explicit agreements on design ownership, modification rights, and secrecy safeguards priceless intellectual property.

Industry Trends and the Future of DFM in Additive Manufacturing

The potential for DFM integration with 3D printing technologies is constantly growing due to the convergence of cutting-edge software tools, material breakthroughs, and hybrid production techniques.

Artificial Intelligence and Design Automation

Many classic DFM concerns are becoming automated by AI-driven design optimization technologies, allowing for quick iterations and mistake identification throughout the design stage. These technologies can optimize construction orientations, automatically determine possible support structure needs, and recommend design changes to increase manufacturability.

Before production starts, machine learning algorithms that have been trained on large amounts of manufacturing data may forecast possible quality problems and suggest design changes. The likelihood of expensive redesigns and manufacturing delays is greatly decreased by this predictive capacity.

Advanced Materials and Multi-Material Printing

New printing materials are constantly being developed, which increases design options while necessitating revised DFM rules. Applications that were previously unattainable with conventional production techniques are made available by composite materials that combine strength, lightweight qualities, and electrical conductivity.

Engineers can produce parts with different qualities throughout their structure thanks to multi-material printing capabilities, creating new opportunities for performance optimization and functional integration. For DFM to be implemented successfully, it becomes essential to comprehend how various materials interact both during printing and throughout service.

Sustainability and Circular Economy Integration

Design choices and the choice of manufacturing technique are increasingly influenced by environmental factors. The capacity of additive manufacturing to create components on demand lowers material waste and inventory needs, complementing the circular economy concepts that many businesses place a high priority on.

Recyclability, end-of-life considerations, and material efficiency are the main focuses of DFM principles modified for sustainability. As corporate sustainability pledges and environmental legislation influence procurement choices across sectors, these considerations grow more crucial.

BOEN Prototype: Your Partner in DFM-Optimized Additive Manufacturing

With our extensive additive manufacturing capabilities, BOEN Prototype specializes in bridging the gap between creative design ideas and realistic production realities. Our proficiency in a variety of 3D printing technologies, such as SLA and SLS processes, allows us to provide tailored solutions for a range of industrial needs.

Our technical staff ensures that DFM concepts are appropriately integrated from idea to production by collaborating with customers to improve designs for additive manufacturing. Customers in the consumer electronics, automotive, aerospace, and medical device sectors often get better outcomes from this strategy.

We can handle challenging prototype tasks while maintaining the quality requirements required for functional validation and low-volume production thanks to our sophisticated manufacturing equipment and in-depth DFM experience. Engineering-grade metals, polymers, and specialty compounds appropriate for demanding applications are among the materials we provide.

We assist customers in cutting down on development time, production costs, and achieving better part performance by combining design optimization advising with our manufacturing capabilities. This all-encompassing strategy guarantees that additive manufacturing projects fulfill stringent quality and schedule requirements while delivering maximum value.

Conclusion

The successful application of DFM principles to additive manufacturing requires a fundamental understanding of both traditional design optimization concepts and the unique characteristics of layer-based production methods. While 3D printing introduces new design freedoms and manufacturing possibilities, it also demands careful consideration of support structures, material properties, and post-processing requirements. The integration of DFM with additive manufacturing continues to evolve as new materials, software tools, and hybrid manufacturing approaches expand the technology's capabilities. Organizations that effectively combine these disciplines gain significant advantages in product development speed, design flexibility, and manufacturing efficiency across diverse industry applications.

FAQs

1. Can traditional DFM rules be directly applied to 3D printing?

Traditional DFM principles provide a valuable foundation, but they must be significantly adapted for additive manufacturing. Conventional rules focused on machining accessibility and mold design don't directly translate to layer-based production. Instead, 3D printing requires consideration of build orientation, support structures, and material-specific constraints that differ fundamentally from traditional manufacturing limitations.

2. What are the main design constraints when applying DFM to additive manufacturing?

Key constraints include minimum wall thickness requirements, overhang angle limitations, support structure accessibility, and material-specific considerations such as shrinkage and thermal stress. Layer resolution affects minimum feature sizes, while build volume dimensions constrain maximum part sizes. Understanding these limitations enables designers to optimize parts for successful 3D printing while maintaining functional requirements.

3. How does material selection impact DFM decisions in additive manufacturing?

Material choice significantly influences design optimization strategies, as different materials exhibit varying shrinkage rates, thermal properties, and mechanical characteristics. Metal powders require different support strategies compared to polymer filaments, while biocompatible materials may limit post-processing options. Successful DFM integration requires matching material properties with design requirements and manufacturing capabilities.

4. What role does post-processing play in DFM for additive manufacturing?

Post-processing considerations must be integrated into the initial design phase rather than treated as separate operations. Support removal accessibility, surface finishing requirements, and heat treatment compatibility all influence design decisions. Parts designed with post-processing in mind typically achieve better surface quality and dimensional accuracy while reducing overall production time and costs.

Partner with BOEN Prototype for DFM-Optimized Manufacturing Solutions

BOEN Prototype combines extensive additive manufacturing expertise with proven DFM optimization capabilities to deliver superior prototyping and low-volume production solutions. Our comprehensive approach helps clients achieve faster development cycles, reduced costs, and improved part performance through intelligent design optimization and advanced 3D printing technologies. Whether you need rapid prototyping for functional validation or low-volume production parts, our team provides the technical expertise and manufacturing capabilities necessary for success. Contact our specialists at contact@boenrapid.com to discuss how our additive manufacturing supplier services can optimize your next project for manufacturing excellence and accelerated time-to-market.
