How DFM Improves Production Yield and Quality?

By improving product designs in the early stages of development, Design for Manufacturing (DFM) is a transformational process that immediately improves production yield and quality. DFM decreases material waste, simplifies production processes, and lowers manufacturing errors via the methodical application of manufacturability principles. Businesses that use complete DFM techniques usually see significant quality improvements along with yield increases of 15–30%. This proactive strategy tackles possible manufacturing issues before they arise, leading to more effective production cycles, less rework needs, and consistently better-quality outputs in a variety of industrial settings.

Understanding the DFM Process and Its Principles

A strategic engineering strategy known as "Design for Manufacturability" radically alters the way goods are developed from conception to manufacturing. This approach seamlessly connects creative innovation with realistic production realities by prioritizing manufacturing factors in design choices.

Core DFM Principles That Drive Results

Effective DFM is based on a number of interrelated ideas that work together to maximize manufacturing results. The fundamental idea of design simplification is to minimize needless complexity while preserving functional integrity. This strategy entails removing unnecessary features, combining parts where feasible, and developing designs that naturally fit production capacities.

The selection of materials in DFM takes into account aspects of manufacturability in addition to fundamental economic concerns. The appropriate material selection takes production scalability, tool compatibility, and processing needs into account. When appropriately specified, advanced materials like engineering plastics and specialty metals can provide higher performance while preserving outstanding manufacturability.

Another crucial idea is tolerance management, which strikes a balance between production capacity and functional needs. While excessively loose requirements might impair product performance, tighter tolerances raise costs and complexity. Tolerance hierarchies that emphasize key dimensions while allowing flexibility in non-critical areas are established by effective DFM.

Integrating Cross-Functional Collaboration

From the beginning of the project, engineering, production, and procurement teams must work together seamlessly to execute DFM successfully. Through this integration, technical quality is maintained while design choices are made to account for actual production limitations. All stakeholders participate in regular design reviews, which help to spot any problems early on while changes are still affordable and feasible.

Input from manufacturing during the design stage offers crucial information about possible bottlenecks, tooling needs, and production capabilities. This cooperation frequently identifies other strategies that provide better manufacturability qualities while achieving the same functionality.

Common DFM Challenges and How to Avoid Them

Even well-meaning DFM projects might be derailed by challenges that manufacturing teams often face. Successful results in a variety of production contexts are ensured by comprehending these issues and putting proactive solutions into place.

Identifying Early-Stage Design Issues

One of the most expensive errors in product development is late-stage manufacturability evaluations. When manufacturing factors are first discussed after the design is finished, essential adjustments often need significant rework, changes to the tools, and delays in the schedule. These costly mistakes may be avoided by establishing manufacturability checkpoints at every stage of the design process.

Another frequent problem is material-process incompatibilities, especially when designers propose materials without fully comprehending manufacturing process requirements. Although advanced polymers may have superior mechanical qualities, they might be challenging to produce with current machinery. Similar to this, metal alloys with exceptional strength properties may need for processing methods or specialized tools that are outside the scope of present capabilities.

Practical Assessment Frameworks

By using systematic evaluation techniques, any problems may be found before they affect quality results or production schedules. By comparing designs to predetermined manufacturability standards, these frameworks identify areas that need improvement. Throughout the development phase, emerging designs are guaranteed to retain their manufacturability features thanks to regular evaluation cycles.

Businesses that achieve better DFM outcomes often create internal checklists and assessment matrices that are customized to their unique manufacturing capabilities and quality standards. In addition to fostering institutional knowledge that will aid future advancements, these tools provide uniformity across initiatives.

Comparing DFM with DFA and Traditional Design Methods

Organizations may choose the best technique for certain applications and production needs by being aware of the differences between Design for Manufacturing, Design for Assembly (DFA), and traditional design methodologies

Strategic Differences in Design Philosophy

DFM focuses on material processing, tooling needs, and production efficiency in order to maximize the manufacturability of individual components. This emphasis produces components that are cost-effective across a range of manufacturing quantities and manufacture consistently. In contrast, DFA places a higher priority on assembly activities, focusing on assembly sequence optimization, component consolidation, and fastener reduction.

Functional performance and aesthetics are usually given priority in traditional design processes, with manufacturing issues being taken care of later in the development process. Although this method may provide very good technical answers, it often produces designs that are difficult or costly to produce effectively.

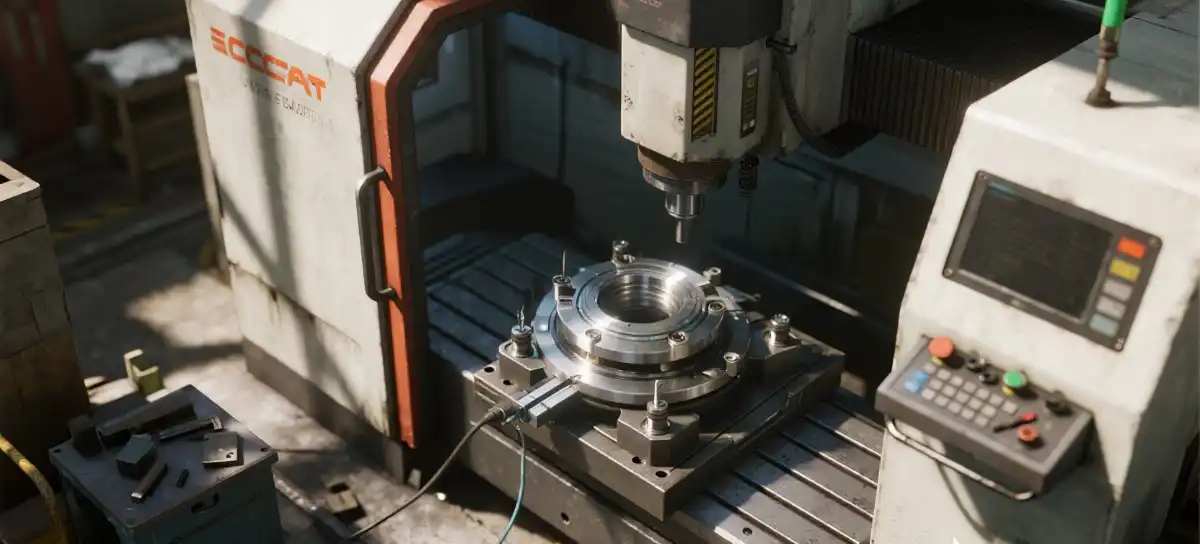

Volume-Based Strategy Selection

Optimal design method selection is heavily influenced by production volume concerns. Even if individual component prices are still higher, DFM solutions that reduce tooling complexity and setup needs are often advantageous for low-volume manufacturing. High-volume applications provide more advanced processing and tooling strategies that lower costs per unit while preserving consistency in quality.

Design flexibility and quick iteration capabilities are especially important for small-batch manufacturing and prototyping. Businesses that specialize in these applications include BOEN Prototype, which offers full prototype services that assist the successful deployment of DFM across a range of sectors. These services include CNC machining, fast injection molding, and sophisticated 3D printing technologies.

Practical Implementation and Optimization Techniques

Manufacturability factors must be systematically included into current design processes in order to successfully use DFM while preserving project efficiency and technical quality.

Workflow Integration Strategies

Consistent application is ensured without interfering with existing development cycles by including manufacturability assessments into established design methods. In order to enable teams to assess and improve manufacturability features before moving on to further stages of development, this integration usually entails setting up review checkpoints at crucial design milestones.

During implementation, cross-departmental cooperation becomes crucial, necessitating open lines of communication between the procurement, production, and design teams. Frequent coordination meetings provide chances to discuss new issues or limitations while ensuring that all parties involved are aware of the existing design directions.

Advanced Optimization Methods

Sophisticated software tools that evaluate designs for manufacturability characteristics and provide optimization suggestions are used in modern DFM implementation. In order to find areas for improvement that might be missed by human review procedures, these platforms assess geometric aspects, material specifications, and processing needs.

Advanced DFM tools' simulation capabilities forecast manufacturing results prior to the start of physical prototype. Potential fill patterns, cooling properties, and dimensional stability problems are revealed by flow analysis for injection molding applications. In a similar vein, machining simulations pinpoint the best cutting techniques, necessary tools, and any quality issues.

Prototyping is still essential for confirming anticipated production results and validating DFM choices. Businesses that need outside assistance with prototype gain from collaborating with specialist suppliers that have extensive skills in a variety of materials and production processes.

Conclusion

By tackling manufacturability issues throughout the design stage, Design for Manufacturing revolutionizes production processes, leading to increased yields, better quality, and lower production costs. Faster time-to-market, reduced production costs, and improved product dependability provide businesses using complete DFM methods a major competitive edge. The approach's focus on systematic optimization and cross-functional cooperation results in long-lasting enhancements that benefit whole product portfolios and strengthen organizational capacities for upcoming developments.

FAQs

1. What specific benefits does DFM provide for production yield improvement?

By removing design elements that often result in manufacturing flaws or processing challenges, DFM immediately improves production yields. Businesses usually get yield increases of 15–30% while lowering scrap rates and rework needs via methodical design optimization. By identifying possible failure modes early on, the technique enables designers to put fixes in place before production starts.

2. How can we assess our current designs against DFM principles?

Geometric complexity, material processability, tolerance achievability, and tooling needs are some of the known manufacturability criteria that must be used in a systematic examination of current designs. Many businesses benefit from working with seasoned prototyping firms that can do thorough DFM analyses and provide optimization suggestions based on in-depth manufacturing knowledge.

3. Does DFM apply equally to both electronic and mechanical products?

Although precise implementation specifics differ depending on the production methods and materials involved, DFM concepts are ubiquitous throughout the fields of mechanical and electrical products. While mechanical applications prioritize material processing, geometric optimization, and structural integrity requirements, electronic goods put a greater emphasis on assembly concerns, component placement, and heat control.

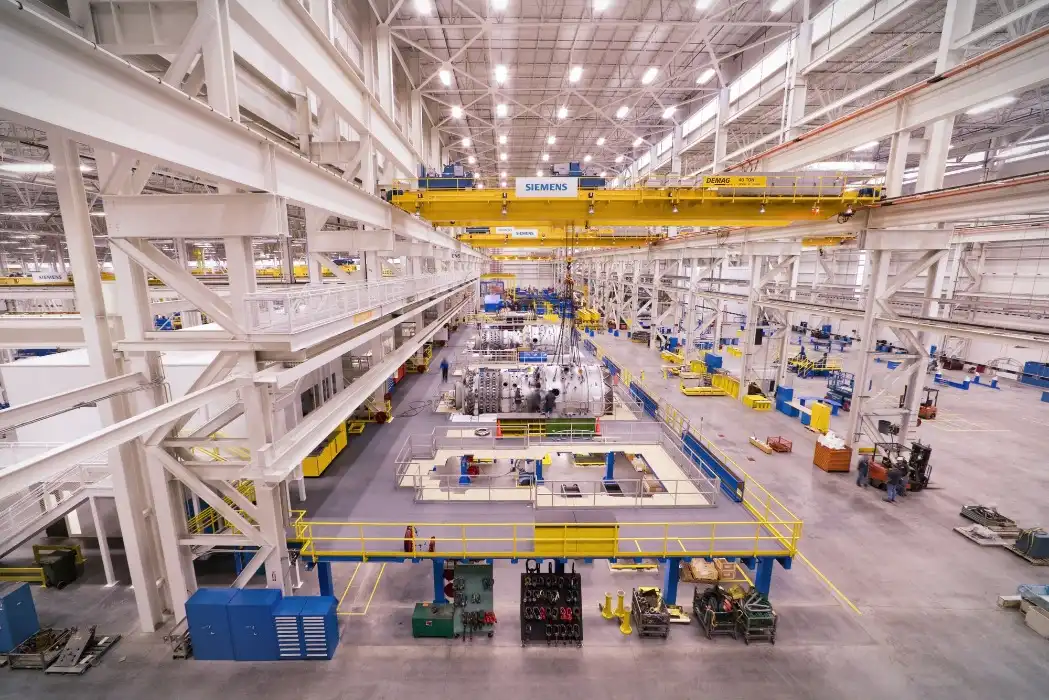

Partner with BOEN Prototype for Superior DFM Implementation

BOEN Prototype provides complete design for manufacturability solutions that are customized to meet the specific needs of consumer electronics manufacturers, automakers, medical device developers, and aerospace firms. Through quick prototype and low-volume production runs, our broad manufacturing capabilities - which include CNC machining, fast injection molding, vacuum casting, and cutting-edge 3D printing technologies—allow us to test DFM techniques.

Our skilled engineering team works directly with customers to optimize designs for manufacturing while upholding functional performance and aesthetic standards. Whether you want sophisticated aircraft assembly, precise automotive parts, or biocompatible medical device prototypes, our DFM experience guarantees the best possible manufacturing results. Speak with our experts at contact@boenrapid.com about how our DFM manufacturing services may improve the success of your next project while cutting expenses and speeding up time-to-market.
