SLA 3D Printing Applications for Functional and Visual Prototypes

Stereolithography, or SLA, is one of the most important tools in the development of new products today. This advanced 3D printing method uses ultraviolet lasers to fix photosensitive resin one layer at a time. This makes samples that are very accurate and have smooth surfaces. SLA technology lets you check both the functionality and the aesthetics of your designs before going into full-scale production. This is useful whether you're making interior trim for electric cars, cases for smart home devices, or biodegradable housings for medical tools.

Understanding SLA 3D Printing Technology

How Stereolithography Works

When compared to other additive manufacturing methods, Stereolithography works on a completely different concept. A pot of liquid photopolymer resin starts the process. Each cross-section of your image is traced onto the resin surface by a laser beam, which hardens the resin. As each layer hardens, the build platform moves down a little and a new layer of plastic runs over it. This process will keep going until your sample is fully formed.

Laser-curing technology is very precise, which lets Stereolithography reach layer resolutions of up to 25 microns. This means that samples with fine features like threads, textures, and complicated shapes look just the way they're supposed to. When procurement managers look at prototyping choices, this level of detail means they can make decisions with more confidence and with fewer design changes.

Comparing SLA with FDM and SLS Technologies

The differences between SLA and Fused Deposition Modeling (FDM) are clear at first glance. FDM uses a nozzle to push heated material into parts, which are then built from the bottom up. FDM is good for making simple idea models and jigs, but its layer lines and low detail resolution make it less good for making samples for clients or doing precise functional testing.

Selective Laser Sintering (SLS) uses laser energy to join powdered materials together, making strong, useful parts that don't need any support structures. But SLS usually makes surfaces that are harder and needs to be processed afterward to make them look good. Stereolithography is the best method when both strength and good looks are important.

Technical Advantages for Industrial Applications

From working with automakers and Tier-1 providers, we know how Stereolithography can help engineers solve certain problems. The technology makes parts whose mechanical traits are isotropic, which means their strength stays the same in all directions. This feature is very important for making sure snap-fit assemblies work, trying the sturdiness of housings, or checking how ergonomic parts are under real-world stress.

The smooth finish that Stereolithography gives the surface cuts down on the time needed for post-processing. Parts come off the build platform ready to be lightly sanded and painted. This cuts the time it takes from concept to prototype ready for showing by a large amount. Testing labs like this speed a lot when they have to meet short certification dates.

Key Applications of SLA 3D Printing in Prototyping

Automotive and EV Component Development

The car industry needs prototypes that can stand up to thorough functional testing and still be true to size. We've helped a lot of electric car startups make samples of battery enclosures using SLA, which lets us precisely add thermal management features. The technology can make clear or see-through parts for lighting housing samples, which lets optical engineers test beam patterns before committing to injection mold tools.

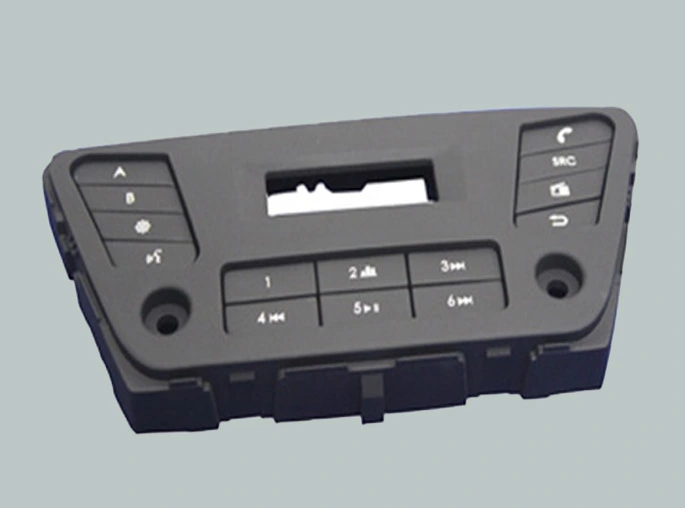

Another strong application area is interior component development. Parts of the dashboard, the center panel, and the door handles need surfaces that correctly show how they will look when they are finished. This level of detail is possible with Stereolithography, which gives design teams trust as they test fit, finish, and user experience. When one car client switched from standard CNC-machined prototypes to Stereolithography, the number of iterations needed to make changes to internal parts dropped by 40%.

Consumer Electronics and Enclosure Fabrication

There is constant pressure on device makers to get new goods to market quickly. Stereolithography speeds up this process by making sample enclosures that correctly show complicated parting lines, button positions, and port setups. Before investing in tools, people who are making smart home products use these samples to test how to put the products together and find any problems that might come up during production.

The technology really shines when it comes to making samples for consumer gadgets that need to look good and work properly. We've made cases for wearable tech where the prototype did two things: it was used for client demos to show what the design was supposed to look like, and it was also used for engineering proof to make sure the circuit board fit and that heat was properly dissipated. This dual feature gets rid of unnecessary prototyping steps, which shortens the time it takes to build software.

Medical Device and Biocompatible Prototyping

Manufacturers of medical devices have to follow strict rules set by regulators, so the correctness of prototypes is a must. This field is helped by Stereolithography, which uses special safe resins that can be used for skin-contact tests and short-term tissue interaction studies. Prototypes of surgical instruments let real surgeons test their ergonomics, and prototypes of diagnostic device housings let engineers test complicated internal shapes before they are made.

Stereolithography is used by labs and biotech R&D teams to make unique fixtures, tools for handling samples, and specialized test equipment. The technology's ability to make shapes that can't be made with standard tools opens up new ways to set up experiments. We've worked with a number of medical study groups to make prototypes that have directly led to the development of ground-breaking new devices.

Robotics, Automation, and Structural Components

Manufacturers of robots need samples that are strong and light at the same time. Stereolithography materials that are made to be tough let you make gripper parts, sensor housings, and mounting frames that can withstand repeated stress tests. Developers of self-driving guided vehicles use these prototypes to test complicated systems before going on to production materials like aluminum or engineered plastics.

System designers like Stereolithography because it can quickly make samples of custom connectors, cable management solutions, and modular component sets. The speed of Stereolithography modeling makes integration testing go faster when building automated systems with many parts. One robotics client cut the time it took to develop a new product by six weeks by using early Stereolithography models to find interference problems before they were made of metal.

Aerospace, UAV, and High-Strength Applications

Companies that are making business and industrial drones need prototypes that are strong enough to be used in production while still being affordable for iterative design processes. We've helped aircraft engineering teams make airframe parts, gimbal housings, and aerodynamic fairings using Stereolithography, which gives them the stable 3D shapes they need for wind tunnel tests and flight tests.

Stereolithography can make parts with complicated internal pathways and structures that are optimized for weight, which is useful for people who make aviation parts. For approval testing, prototypes can have realistic mounting features and stress concentration spots that give data that is more like that of the final production parts. This level of accuracy lowers the chance that expensive redesigns will be needed during the official testing stages.

How SLA Prototyping Solves Common Manufacturing Challenges

Addressing Lead Time Pressures

When you use traditional development methods, like cutting from billet stock or making silicone models, shipping can take up to three weeks. SLA makes this process much shorter. Usually, we can make complicated samples in three to five business days, which includes post-processing and finishing. This speed makes it possible to make quick changes to designs, which helps keep product development on tight plans.

When unexpected changes to the design happen late in the development process, Stereolithography makes it possible to make the changes quickly. As a result, makers of industrial equipment have said that this ability to respond quickly saved their projects from expensive delays when testing in the field showed that design changes needed to be made. When you can get updated prototypes quickly, possible setbacks are quickly turned into small course changes.

Overcoming Accuracy Limitations

Tight tolerances and complicated shapes can be hard for conventional development to handle. Hand-finished models are more likely to be different, while made samples may need to be set up more than once and need special tools. Stereolithography makes parts straight from CAD data with little help from a person. This makes sure that the accuracy stays the same over many versions or similar prototype sets.

This stability is helpful when doing comparative testing or making examples for a lot of different people. Consulting firms that do product design really like getting sample sets where the differences in sizes are within acceptable statistical ranges. This kind of dependability backs up objective evaluation criteria and boosts faith in choices about production that follow.

Expanding Material Versatility

Today's Stereolithography materials have a wide range of amazing properties. Standard resins have smooth surfaces that are great for making design models and visual samples. Tough resins act like industrial thermoplastics, which lets you test their functionality under mechanical loads. For gaskets, seals, and soft-touch parts, flexible plastics can be used to make materials that look and feel like rubber. High-temperature plastics can work in harsh conditions like those found in car and industrial settings.

To choose the right resin, you need to know what the proof goals are for your sample. Here are a few types of resin and what they are usually used for:

• Standard Resins: These are great for checking the shape and fit, design reviews, and visual shows where accuracy in measurements is more important than mechanical performance. These plastics make things with great surface finishes that don't need much post-processing.
• Tough and Durable Resins: These are good for snap-fit testing, assembly proof, and functional testing that lasts for a short time. Parts made from these materials can handle being handled over and over and some mechanical stress, which makes them useful for testing the user experience.
• Flexible and Elastomeric Resins: These let you make prototypes of gaskets, seals, overmolded parts, and surfaces that feel good to the touch. Before committing to production tooling, these materials help test how well the parts fit together and how much they compress.
• Biocompatible Resins: These meet government guidelines for touch with skin and limited contact with tissue, which helps the development of medical devices. With these special materials, ergonomic tests can be done with real doctors and nurses in real hospital situations.
• High-Temperature Resins: These resins keep their shape and mechanical qualities at high temperatures, making them good for parts under the hood of cars or samples of industrial equipment that will be heated up during use.

Choose the right material for the prototype has a direct effect on how useful it is, which in turn affects trust in choices about production. Our technical team regularly meets with clients to make sure that the resin they choose meets their specific proof needs. This way, prototypes give useful data instead of just pictures.​​​​​​​

Selecting the Right SLA Materials and Equipment for Your Prototypes

Resin Selection Framework

Systematic evaluation is needed to match the qualities of the resin to the goals of the sample. When you need a prototype for useful testing, mechanical qualities are the most important thing. Tensile strength, extension at break, and impact resistance are important factors to consider when choosing a material. On the other hand, surface finish quality and color steadiness are the most important things when client presentations or design confirmation are your top concerns.

Biocompatibility adds regulatory aspects to the choice of material. Medical gadget samples that are going to be tested on people must use resins that have the right certifications. Knowing these needs ahead of time keeps you from having to wait for material substitutions after the initial sample production. Our purchasing team stays up to date on plastic certifications so they can make the right choices.

Build Volume and Resolution Considerations

The powers of the equipment directly affect the costs and viability of the prototype. When sharpness is more important than part size, small-format SLA tools are great at making complicated parts for things like medical devices or consumer electronics. Large-format systems can handle large build areas for things like drone airframes, car interior panels, or industrial equipment housings.

Resolution needs are different for each application. Equipment that can handle small layer heights is good for making consumer electronics cases with fine surface textures. For robots structural parts, build speed may be more important than final resolution, and slightly thicker layers may be acceptable to cut down on production time. When these factors are balanced, both the quality of the sample and the cost of the project are maximized.

Total Cost of Ownership Analysis

Assessing investments in Stereolithography involves more than just buying tools. The total cost of ownership is made up of resin costs, post-processing needs, staff sharing, and throughput capability. Equipment that automates material handling and streamlines processes can help high-volume development operations cut down on the cost of each part. In lower-volume settings, it may be important for tools to be able to work with a variety of plastic types.

When reviewing equipment choices, procurement teams should look at how often they need to be maintained and how long consumables last. There are systems that are easier to own than others, and some need to be calibrated often or have special service contracts. Knowing these practical facts can help you avoid costs that you didn't expect that hurt your budget plans.

Future Trends and Innovations in SLA 3D Printing for Prototyping

Advanced Resin Chemistry Developments

The field of material science keeps making SLA better. Researchers make resins that have better mechanical qualities and are getting closer to being able to be injected-molded into thermoplastics. These materials make it hard to tell the difference between development and low-volume production. This means that Stereolithography parts can be used for longer testing periods or short market trials.

Multi-material Stereolithography is still a cutting edge area of research. Systems that can switch between materials during builds could make prototypes with hard structures and flexible seals or clear windows and opaque housings, all in the same build cycle. These kinds of features would get rid of the need for building steps and shorten the time it takes to validate even more.

Industry 4.0 Integration

More and more, additive manufacturing technologies are being used in smart production projects. Stereolithography systems that are networked allow for centralized production tracking, automated quality checks, and process improvement based on data. With these skills, distributed manufacturing methods can be used to make prototypes in places that are close to design teams or testing sites.

Adding digital workflow makes the process of going from CAD design to finished prototype faster and easier. Automated support generation, build direction optimization, and prediction quality methods cut down on the work that needs to be done by hand while still making things better. Because these improvements make it easier for people with less experience to use Stereolithography, more engineers can use the technology.

Sustainability and Circular Economy Considerations

Environmental duty affects how many products are made in all kinds of businesses. Stereolithography makes less trash than subtractive production because it only builds the geometry and supports that are needed. New plastic mixtures use bio-based materials as feedstocks, which lowers their reliance on oil. Recycling programs for resin and support materials that aren't being used improve environmental ratings even more.

Companies are judging sellers more and more based on their environmental promises. The use of closed-loop material systems and energy-efficient tools in Stereolithography processes is in line with the company's sustainability goals. These things are taken into account by strategic prototyping agreements, which help companies combine the need for quick creation with caring for the environment.

Conclusion

Stereolithography has grown from an early scientific curiosity to an important modeling method used in many fields. Its unique mix of accuracy, surface quality, and material flexibility meets proof needs that are hard for other ways to meet. Whether you're making medical devices that need safe materials, consumer electronics that need to look perfect, or parts for cars that need to be tested for functionality, SLA lets you make samples that help you make decisions quickly and confidently. The technology will still be useful for future product development problems because it is always getting better, with new materials, smarter tools, and more environmentally friendly methods.

FAQ

How quickly can I receive SLA prototypes?

Depending on the complexity, size, and post-processing needed, SLA samples are usually finished in three to five business days. Simple parts that don't need much finishing might be ready in two to three days, but big or complicated parts that need a lot of support removal and surface treatment could take a whole week. For pressing needs, rush services can shorten deadlines even more.

Can SLA parts be used beyond prototyping?

Stereolithography is mostly used for modeling, but some plastics can be used for other purposes as well. Resins that are tough and long-lasting allow for short production runs of unique fixtures, tooling tools, and low-volume parts. However, the mechanical qualities are usually not as good as those of injection-molded alternatives. This means that Stereolithography is better for testing and pre-production than for mass production.

How do SLA costs compare to other prototyping methods?

In general, Stereolithography costs more per part than FDM, but for complicated shapes, it costs less than CNC cutting. The technology gets cheaper as the design gets more complicated because the costs of cutting go up as more features are added, but the costs of Stereolithography stay about the same. When you add up all the costs of the project, including changes and shortened timelines, Stereolithography often gives you the best value.

Partner with BOEN Prototype for Your SLA 3D Printing Needs

BOEN Prototype specializes in providing precise SLA services that are made to fit your specific development needs. Our advanced Stereolithography tools and large library of materials help a wide range of businesses, from medical devices and consumer electronics to automotive and aircraft. The quality of the prototype has a direct effect on your trust in the product development process and the time it takes to get the product to market.

Email our expert team at contact@boenrapid.com to talk about the problems you're having with your application. Our Stereolithography skills and knowledge always help clients cut down on time-to-market while maintaining the highest quality standards. This is true whether they need biocompatible prototypes for medical device validation, high-detail enclosures for consumer electronics, or tough functional parts for automotive testing. We're a reliable SLA seller with demanding B2B customers all over the US, and we're ready to turn your design files into prototypes that help you make smart choices and gain a competitive edge.
