Types of CNC Turning Machines and Their Applications
Horizontal CNC Lathes
Horizontal CNC lathes are the backbone of the turning industry, widely used for producing long, cylindrical parts with exceptional precision. Their design facilitates efficient chip evacuation and smooth handling of bar stock, reducing downtime and improving workflow. These lathes excel at creating external features such as threads, tapers, grooves, and complex contours on shafts, axles, and rotational components. They are particularly valuable in industries such as automotive, machinery, and general manufacturing, where consistent quality, repeatability, and high production volume are essential for maintaining competitive advantage.
Vertical CNC Turning Centers
Vertical CNC turning centers are engineered to handle large, heavy, or awkwardly shaped workpieces that would be difficult to manage on a horizontal lathe. They are widely used in aerospace, energy, and heavy machinery industries for producing turbine discs, pump housings, engine components, and other substantial parts. The vertical orientation improves workpiece stability, reduces deflection, and enhances operator accessibility during setup, inspection, and tool changes. These features make vertical turning centers an ideal choice for precise machining of high-mass components requiring strict dimensional tolerances.
Multi-Axis CNC Turning Machines
Multi-axis CNC turning machines combine traditional turning with milling, drilling, and other operations, enabling complete part production in a single setup. By integrating multiple processes, these machines reduce handling, minimize repositioning errors, and significantly shorten production cycles. Multi-axis machines are especially valuable for producing complex components with intricate geometries, tight tolerances, and mixed features that would otherwise require multiple setups on different machines. Their versatility and precision make them essential in high-tech sectors such as aerospace, medical devices, and precision engineering, where efficiency and accuracy are critical to success.
Critical Features to Evaluate in CNC Turning Machines
Spindle Power and Speed
The spindle is the heart of any CNC turning machine. When evaluating spindle performance, consider both power and speed. Higher spindle power allows for more aggressive cutting, especially in tough materials like stainless steel or titanium. Spindle speed, measured in RPM, is crucial for achieving optimal cutting conditions across a range of part diameters. Look for machines with a wide speed range to accommodate diverse turning operations.
Tool Turret Capacity and Quick-Change Systems
The tool turret holds the cutting tools used during the turning process. A larger turret capacity means more tools can be loaded, reducing the need for manual tool changes and increasing productivity. Quick-change systems allow for rapid tool swaps, minimizing downtime between operations. Some advanced machines feature multiple turrets, enabling simultaneous cutting operations and further boosting efficiency.

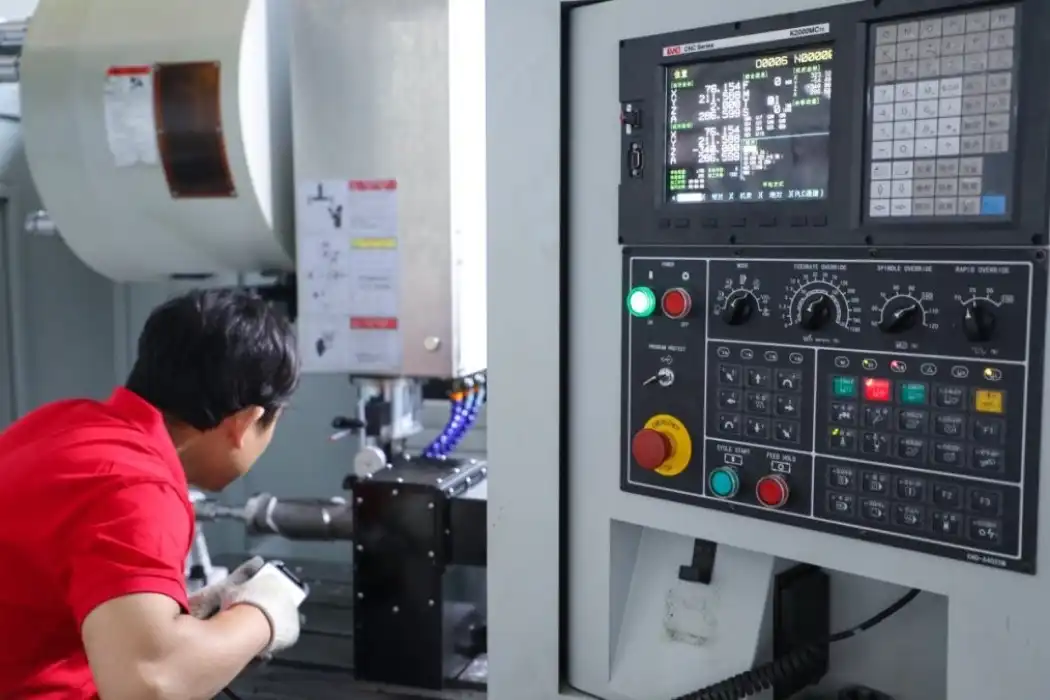

Control System and Programming Interface
The control system is the brain of the CNC turning machine. Modern control systems offer features like graphical programming interfaces, built-in cycle time estimation, and collision detection. Look for machines with user-friendly controls that can streamline programming and reduce setup times. Additionally, consider the compatibility of the control system with your existing CAM software to ensure seamless integration into your workflow.
Maximizing Efficiency and Quality in CNC Turning Operations
Implementing Automated Material Handling
Automated material handling systems can significantly enhance the productivity of CNC turning operations. Bar feeders automatically load raw material into the machine, allowing for continuous operation without operator intervention. Part catchers and conveyor systems can safely remove finished parts, reducing cycle times and protecting delicate components from damage. By minimizing manual handling, these systems not only boost efficiency but also improve workplace safety.
Optimizing Cutting Parameters
Achieving the perfect balance of cutting speed, feed rate, and depth of cut is essential for maximizing both efficiency and part quality. Utilize cutting tool manufacturers' recommendations as a starting point, but be prepared to fine-tune parameters based on your specific material and machine capabilities. Advanced CNC turning machines often include built-in optimization features that can suggest ideal cutting conditions based on the programmed operation and selected tooling.
Implementing Quality Control Measures
Maintaining consistent part quality is crucial in CNC turning operations. In-process gauging systems can monitor critical dimensions during machining, allowing for real-time adjustments to compensate for tool wear or thermal expansion. Post-process inspection using coordinate measuring machines (CMMs) or optical comparators can verify part conformance to specifications. By integrating quality control measures into your CNC turning workflow, you can reduce scrap rates and ensure customer satisfaction.
Conclusion
Choosing the right CNC turning machine is a critical decision that can significantly impact your manufacturing capabilities and bottom line. By carefully evaluating machine types, key features, and operational considerations, you can select a CNC turning solution that aligns with your production goals. Remember that the most advanced machine isn't always the best choice – the ideal solution is one that balances your specific needs for accuracy, productivity, and versatility while fitting within your budget and operational constraints.
FAQs
What materials can be machined using CNC turning?
CNC turning can process a wide range of materials, including metals like steel, aluminum, and brass, as well as plastics such as ABS, POM, and PEEK. The choice of material depends on the part's requirements and the machine's capabilities.
How does CNC turning differ from CNC milling?
While both are subtractive manufacturing processes, CNC turning involves rotating the workpiece against a stationary cutting tool, making it ideal for cylindrical parts. CNC milling uses a rotating cutting tool on a stationary workpiece, better suited for creating flat surfaces and complex 3D shapes.
Experience Precision CNC Turning with BOEN
At BOEN, we specialize in high-quality CNC turning for prototypes and low-volume production. Our state-of-the-art CNC turning machines and expert technicians ensure precision results across a wide range of materials. From automotive components to medical devices, we deliver exceptional quality and rapid turnaround times. Experience the BOEN difference in CNC turning – contact us at contact@boenrapid.com to discuss your next project.
