How Tooling Costs Affect Short-Run Manufacturing

The economics of short-run manufacturing are largely determined by tooling costs, which determine how much you spend up front compared to how much you pay per part. In mass production, the costs of the tools are spread out over thousands of units. In small batch production, on the other hand, these costs are concentrated on a smaller number of pieces. This means that every choice you make about molds, dies, and fittings is very important. When purchasing in small amounts for testing, special uses, or market validation, knowing this link helps procurement teams find the best balance between speed, freedom, and budget.

Understanding Tooling Costs in Short-Run Manufacturing

What Comprises Tooling Expenses

Tooling costs include both set and changeable costs that come with making the tools that will be used to make your parts. For example, creating and building molds, dies, or cutting tools are examples of fixed costs that don't change no matter how many parts you make. Variable costs include the time it takes to set up and calibrate the machine, check the first product, and make any necessary changes during production runs.

Spreading these fixed expenses out over small amounts is what makes short-run manufacturing so hard. When a cast costs several thousand dollars but only makes 500 parts instead of 50,000, the tooling load on each part is much higher. Because of this, you need to carefully consider which tooling method fits your production volume, schedule, and quality needs.

Common Tooling Methods and Their Cost Implications

For different types of making, you need to buy different kinds of tools, which cost different amounts. Knowing these differences helps buying teams make sure their method fits the needs of the project.

Injection Molding Tooling: Traditional injection molds require a big initial investment, especially for complicated shapes that need family or multi-cavity molds. It is more cost-effective to use aluminum tools instead of hardened steel ones because they can be made faster and require less money up front. They are also durable enough for reasonable production numbers. Rapid tooling methods that use additive manufacturing to make mold parts have become useful for very small runs, though you may need to think more about the surface finish and accuracy of the dimensions.

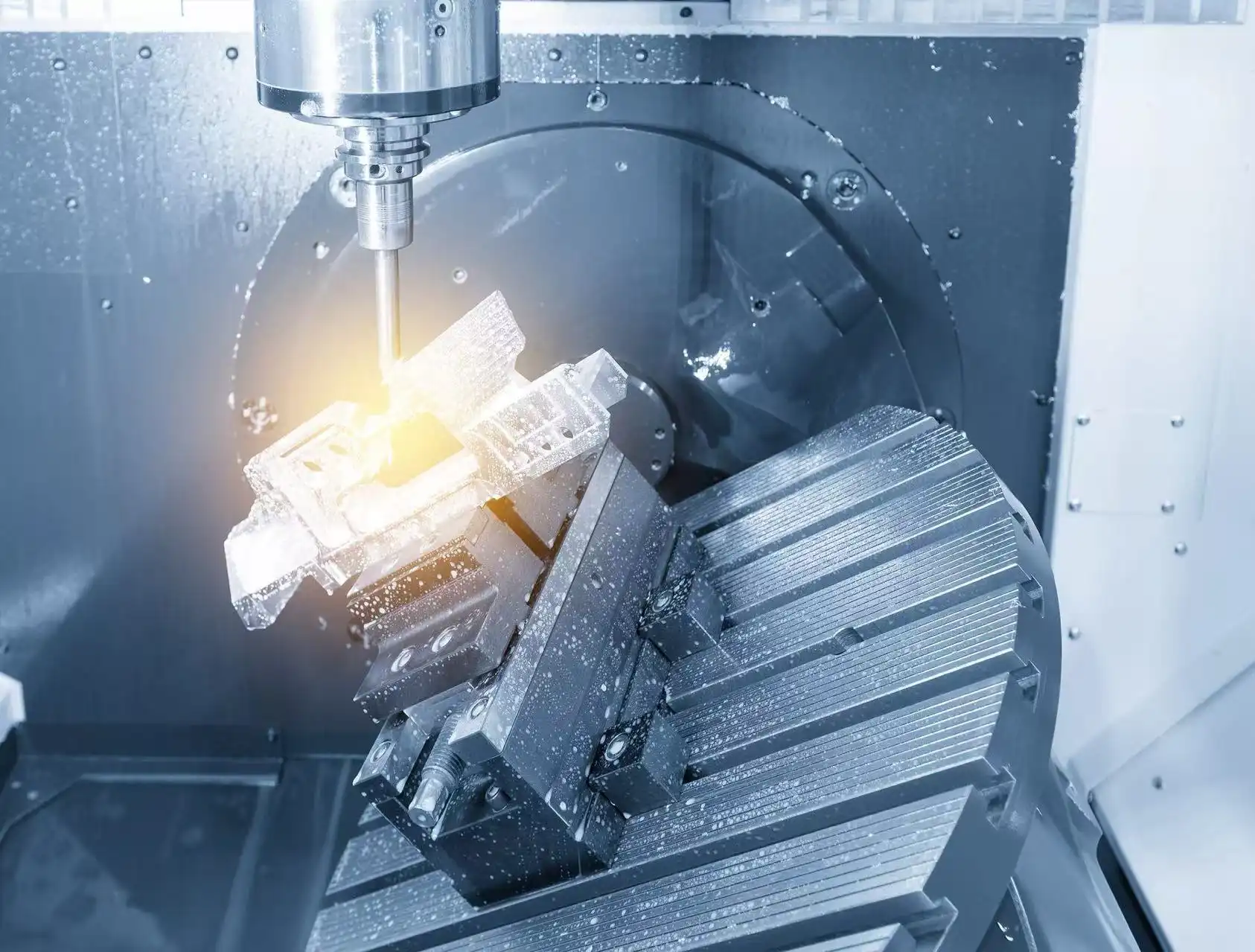

CNC Machining: When CNC machining, simple tools and workholding solutions are used instead of complex models for this subtractive process. The main things that drive up tooling costs are cutting tools, jigs for accuracy, and computer time. This makes CNC cutting a great choice for low-volume production where design changes are likely to happen, since changing the tools only requires updating instead of changing the mold itself.

Rapid Tooling Technologies: Additive manufacturing has changed the costs of tooling by letting useful parts be made directly without traditional molds or by making sacrificial templates and cast inserts. For some jobs, buying teams can skip expensive tooling altogether thanks to technologies like SLA and SLS. However, the qualities of the material and the speed of production must match the needs of the part. At BOEN Prototype, we use these technologies to help our clients keep their design options open while minimizing their original investment.

Industry-Specific Tooling Considerations

For automotive uses, especially for lighting housings and internal parts, it's common to need tools that match how the surface looks with how well they work. EV startups often need to make quick changes to engine parts. This is why modular tooling is useful for adapting to changes in design without having to retool everything.

Consumer electronics need precise covers with tight specs. The quality of the tools used directly affects how well the parts fit together and how the finished product looks. It's harder for companies that make medical devices because they have to use tools and methods that are compatible with biocompatibility standards and cleanroom production settings. For aerospace and UAV uses, high-strength materials and precise measurements are very important. This means that the tools used must be able to work with modern plastics and metal alloys while keeping tight tolerances.

How Tooling Costs Impact the Economics of Short-Run Manufacturing

Fixed Versus Variable Cost Analysis

To make limited output work economically, you need to know how the costs of tools affect the costs per unit. Whether you make 100 or 1,000 parts, the fixed cost of the tools stays the same. However, the fluctuating costs of materials, labor, and machine time go up or down depending on the number of parts you make. This makes a breakeven analysis, which means that ways that require a lot of tools are only economically viable above a certain number level.

This relationship can be seen in real life: the cost of metal injection mold tooling could be $8,000, and the cost of making a single part would be $3.50. The same part can be CNC machined with only a small investment in tools ($500 for fittings), but it costs $12 per unit to make. Around 700 units are needed to break even. Below this number, cutting is cheaper, even though each piece costs more. Above this number, the investment in casting pays off because the variable costs are lower.

Lead Time Trade-offs

The complexity of the tools directly impacts project timelines, making it hard to balance speed-to-market and cost-optimization. Complex molds that need to be changed several times can make wait times weeks longer, which could cancel out the benefits of responsiveness that make short-run manufacturing appealing. Purchasing teams have to think about whether engaging in faster tooling methods, even if they cost more, will give them a competitive edge by letting them enter the market earlier or speeding up the approval process.

These timelines are slashed by a huge amount when rapid tooling methods are used. What used to take four to six weeks to make a mold can now be done in just a few days with additive manufacturing or simpler metal tools. This speed advantage is especially useful when there aren't many days left until a market opens, there is a lot of competition, or the design needs to be confirmed before production tools are made.

Volume Threshold Decision Making

To find the best way to make something, you have to figure out where approaches that take a lot of tools become cost-effective compared to other options. This limit changes a lot depending on how complicated the part is, what materials are needed, and the quality standards. In general, CNC cutting or additive production are still more cost-effective below a certain number of units, while injection molding becomes more cost-effective above that number.

Sometimes, smart procurement strategies use a mix of methods. For example, they might use rapid tooling for the first runs of validation to make sure the design works, then switch to standard tooling once the production numbers make the investment worth it. This step-by-step method lowers risk while keeping options open during unclear stages of growth.

Optimizing Tooling Costs for Enhanced Manufacturing Efficiency

Strategic Tooling Design Approaches

Cost optimization that works starts with the design phase, when careful choices about part shape and tooling needs can save a lot of money without affecting usefulness.

Modular Tooling Systems: Instead of making models out of a single piece, modular methods use plugs and base plates that can be switched out. This architecture lets you make changes to the design many times by changing only the damaged parts instead of making all new tools. This method works especially well when making product groups that have some things in common but are different in other ways.

Multi-Cavity and Family Molds: When making a lot of parts that are the same, putting them all into one mold spreads the cost of the tools across all of the parts. Using a family mold instead of separate molds for each part lets you make the most of your machine's capabilities while also lowering your overall costs.

Design for Manufacturability: Working with production partners early on in the development process helps find parts that need a lot of tools but could be made easier to use without losing any functionality. Getting rid of undercuts, lowering draft angles, and standardizing wall widths can make tools much simpler and cheaper.

Technology-Enabled Cost Reduction

Digital tools and other modern manufacturing technologies make it possible to get the most out of tooling expenses while still meeting quality standards.

Simulation software lets you test mold designs virtually before they are made. This lets you find problems like filling issues, warping, or poor cooling. Taking care of these online cuts down on the time it takes to make something and saves money on physical versions. Design approval through digital modeling makes sure that investments in tools give the results that were expected from the first production runs.

Additive manufacturing is still growing its use beyond testing to make tools for mass production. Conformal cooling ducts, which aren't possible to machine any other way, speed up cycles and make parts better. Printed cast pieces for bridge tooling allow production to continue while standard molds are being made. This keeps the project moving forward without any delays.

IoT monitors used in predictive maintenance technologies make tools last longer by tracking wear trends and figuring out the best times to service them. Instead of fixing tools only when they break, data-driven maintenance plans keep dimensions accurate throughout production runs and stop unexpected downtime.

Partnership Strategies for Tooling Optimization

Tooling costs are greatly affected by choosing manufacturing partners with the right skills and business plans. Contract makers that focus on making small amounts of things often keep libraries of standard equipment parts that can be used in new ways. This way, the costs are split among several clients and delivery times are shortened.

At BOEN Prototype, we've invested in a wide range of manufacturing techniques, such as CNC machining, rapid injection molding, compression molding, metal pressing, die casting, vacuum casting, and several additive manufacturing technologies, so that we can give our clients the best tooling suggestions based on their specific needs. Our unified method looks at the features of the material, the amount that needs to be made, quality standards, and time limits to find the most cost-effective way to make the product.

Clear discussion about who owns the tools is also important. Some agreements include the cost of tools in the price per piece, which makes planning easier but could make it harder for suppliers to be flexible. Others see tools as capital property that the client owns, which gives them more control and mobility but requires an initial investment. When procurement teams understand these models, they can make deals that are in line with their business and financial goals.

Industry Applications: Tooling Cost Strategies Across Sectors

Automotive and EV Development

In the automotive business, choices about tools are very important at all stages of the product creation lifecycle. Traditional OEMs and Tier-1 suppliers use short-run manufacturing for validation testing. This is where working samples are put through a lot of tests before they are made into production tools. Interior parts like dashboard sections, door panels, and center consoles need to look good and work well, which means they need high-quality tools that can accurately replicate surface finishes and textures.

EV companies have short development timelines and little money, so making the best use of tools is very important. Battery enclosures, thermal control parts, and power electronics housings often need more than one design version because trying their performance shows places where they can be improved. These changes can be made with flexible tooling methods that don't require too much capital. This speeds up time-to-market and frees up money for other development goals.

The accuracy needs that are common in car uses can be seen in lighting housings. Tough quality standards, complicated optical shapes, and structures made of more than one material all call for tools that can keep tight tolerances and work with a variety of plastics and coatings. Before moving to mass production, which requires a lot more money to be spent on tools, these ideas are tested in small batches.

Consumer Electronics and Smart Devices

Companies that make consumer goods work in markets that are very competitive and where product lifecycles are measured in months instead of years. At this speed, manufacturing methods must allow for quick changes and market testing without requiring long-term equipment agreements. Industrial designers often make several changes to enclosure designs as they improve their looks and comfort based on feedback from users and study of competing products.

Device makers use inexpensive tooling solutions to make market proof quantities—enough pieces to do user studies, show investors how the product works, or set up the first distribution relationships. This method lowers the chance of bigger tooling investments by making sure the market is okay with the product before increasing production.

When making smart home products, it can be hard to find the right balance between how the products look and how well they work with tech. Tooling has to be able to handle complicated internal geometries for circuit boards, sensors, and connection parts while still making the outside look good. With limited production runs and fast tooling, these complicated parts can be tested before plans are finalized and money is spent on production molds.

Medical Device Development and Compliance

When regulatory compliance, patient safety, and tooling choices all come together, medical device makers have to deal with special challenges. Every part of manufacturing is affected by guidelines for biocompatible materials, cleanroom production, and paperwork, even the choice of tools.

To make a prototype for ergonomic testing, you need functional parts that accurately reflect the end product's shape and material qualities. Human factors testing is a common way for medical gadgets to get better at their usability, comfort, and effectiveness. These review pieces can be made in small batches with the right tools, so you don't have to buy production equipment too soon.

For some regulatory paths, like FDA 510(k) applications, you may need to show that parts made with production-equivalent methods are substantially similar. This makes people want making methods that can be used between testing and full-scale production, giving regulatory-compliant samples at the cost of a small batch.

Aerospace, UAV, and Robotics Applications

In the aircraft and robots industries, manufacturing is based on high-strength needs and material limitations. Components need to have very high strength-to-weight ratios, which is often done by using new polymers or metal combinations that are hard to work with with traditional tools. When drone makers make parts for the airframe, they need tools that can make parts that can handle operational stresses while keeping the weight down.

Autonomous mobile robots and automated guided vehicles use structure parts where accuracy in measurements affects how well they fit together and how well they work. Tooling optimization is necessary because of the low production numbers during development and initial rollout. Too expensive tools threaten the project's ability to make money, while tools that aren't good enough hurt the quality.

For certification testing, which is common in aerospace uses, proper methods must be used to make samples that are representative. When choosing tools, these needs must be taken into account so that test items properly represent production parts and costs are kept low during the development stages.

How to Choose the Right Tooling Approach for Your Manufacturing Needs

Evaluating Production Volume and Project Scope

Before choosing tools, you should be honest about how many items you plan to make and how long you need to make them. When the number of units needed is known and less than 1,000, projects usually choose low-investment methods like CNC machining, additive manufacturing, or short-run manufacturing, where the cost per unit is still okay because of the low cost of the tools. Volumes between 1,000 and 10,000 units occupy a transition zone where rapid tooling methods using aluminum molds or composite tooling provide balanced economics.

Figuring out whether your project is a one-time production run or the start of a long-term manufacturing process has a big impact on the tools you choose. When production will finally reach a certain level of scale, bridge tooling methods make sense because they let you start shipping while traditional production tools are being made. On the other hand, projects that are only for research need very little investment in tools, so resources can be used to validate designs instead of building manufacturing facilities.

Assessing Technical Requirements and Constraints

Which tooling methods work depends on the difficulty of the part, the requirements for the material, and the quality standards. Parts with complicated shapes, tight tolerances, or difficult material qualities may need more complex tools, which could limit your choices. Surface finish standards are very important. Parts that are only for looks need high-quality tools that accurately duplicate textures and get rid of flaws, while parts that are only for function can use cheaper tools.

Another important thing to think about is material suitability. Some quick tooling methods have limits on the types of materials that can be used, which could mean that specialty polymers or high-performance engineering resins are not available. For medical-grade materials, you might need tools that have been tested to make sure they work in cleanrooms and meet biocompatibility standards. When it comes to die casting, metal pressing, or cutting, the tools used to make metal parts are obviously very different from those used to make plastic parts.

Supplier Capabilities and Partnership Criteria

When choosing industrial partners, you need to look at both their professional skills and the way they run their businesses, as both can affect the success of the project. Tooling support services are what set good partners apart from average ones. Proactive design-for-manufacturing feedback during development stops mistakes that cost a lot of money, and thorough quality planning makes sure that the tooling always produces the same results.

In small-volume manufacturing, where deadlines are tight and needs may change, responsiveness and flexibility are very important. Partners who keep a wide range of skills in-house can switch between manufacturing methods as the needs of a project change. This keeps delays from outsourcing or holes in skills from happening. At BOEN Prototype, we can offer the best solutions instead of pushing projects to follow set procedures because our building is fully equipped with CNC machining, multiple molding processes, metal fabrication, and additive manufacturing technologies.

Clear communication is what separates projects that go well from ones that don't. Open conversations about the prices of tools, lead times, possible risks, and quality standards set realistic planning frameworks. Before agreeing to fabrication, partners should give thorough quotes that break down the costs of tooling versus the costs of each unit, explain how long the wait time will be, and point out any possible design issues.

Key Questions for Potential Manufacturing Partners

Procurement professionals benefit from structured evaluation criteria when assessing manufacturing partners:

What tooling options do you recommend for our volume and timeline, and why? This shows if partners really look at your specific needs or if they just use their chosen methods no matter how well they fit the project.

How do you handle design changes or iterations after tooling is complete? Knowing how to make changes, how much they cost, and how long they take can help you plan ahead for common growth challenges.

What quality assurance processes govern tooling fabrication and first-article production? Partners who take quality seriously will have thorough inspection methods, written procedures, and statistical process control.

Can you provide case studies or references from similar applications in our industry? Having relevant experience with technical problems and output numbers that are similar lowers risk and speeds up the problem-solving process.

What communication protocols and project management systems support our collaboration? Small problems don't turn into project-threatening ones when there are clear escalation tracks, regular reports, and easy-to-reach contacts.

Conclusion

The cost of tools has a big impact on the economics, timelines, and viability of short-run manufacturing projects in all fields. When purchasing teams know how the cost of tools affects the number of units made, the quality of those units, and the cost per unit, they can make smart choices that help projects succeed by finding the best balance between speed, quality, and budget. The best methods involve carefully choosing the right tools and working with manufacturers who can offer a range of services, clear communication, and a real dedication to the success of their clients. As product development cycles shorten and customers want more customization and quick feedback, understanding how tooling costs change is no longer just a useful buying skill; it becomes a smart way to stay ahead of the competition.

FAQ

What are the primary drivers of tooling costs in limited production?

Costs are mostly affected by how complicated the tool is, which is determined by the shape of the part, the tolerances that need to be met, and the quality standards for the surface finish. Molds or fittings that are very complicated, like those with undercuts, fine details, or the need for more than one material, are needed to make complex forms. This takes more time and costs more money. The choice of material for the tools is also important. For example, hardened steel molds are much more expensive than metal ones, but they last longer. Expected production volumes affect the amount of money spent on tools, since higher expected volumes support more durable and expensive tools that keep their dimensions over longer production runs.

Can tooling costs be recovered in small batch production?

Recovery is completely based on how you run your business and set your prices. Companies that make parts for their own use or for research and development usually think of tools as capital spending that is spread out over the duration of the project instead of individual parts. Contract makers often include the cost of reusing tools in the price of each piece for small amounts. This way, the cost of the tools is spread out over the number of pieces that are made. The economic problem gets worse as the number goes down. To recover a large investment in machining across 100 units, the price per piece may have to be higher than what the market will bear. On the other hand, these costs can be more easily covered across 5,000 units without having a negative effect on prices.

What are typical lead times for different tooling approaches?

It usually takes one to two weeks to make CNC cutting tools, which mostly involves making fixtures and setting them. Tooling for rapid metal injection molds takes three to five weeks, based on how complicated it is. It takes six to twelve weeks to make traditional steel models for industrial purposes. When making things directly, additive manufacturing pretty much gets rid of the wait time for tools in short-run manufacturing. However, post-processing may add days. These schedules are based on simple designs that don't need a lot of changes. Geometries that are hard to work with or difficult technology requirements can make schedules much longer.

Partner With BOEN Prototype for Cost-Optimized Manufacturing Solutions

BOEN Prototype is an expert at using carefully optimized tooling methods to help procurement teams deal with the challenges of short-run manufacturing. As a seasoned short-run manufacturing provider, we use our deep understanding of materials, combined production capabilities, and decades of cross-industry knowledge to find the most cost-effective way to meet your needs. We have CNC machining, rapid injection molding, compression molding, metal pressing, die casting, vacuum casting, and advanced additive manufacturing technologies like SLA and SLS at our site. This lets us suggest solutions based on your needs instead of the limits of the equipment. We give clear advice on tooling investments, realistic timelines, and quality standards whether you're making military parts, iterating consumer electronics designs, making prototypes for cars, or testing medical devices. Get in touch with our engineering team at contact@boenrapid.com to talk about your project needs and find out how smart tooling choices can speed up your development while lowering costs.

References

Bakerjian, R. (2018). Tool and Manufacturing Engineers Handbook: Volume 8 - Plastic Part Manufacturing. Society of Manufacturing Engineers Press.

Kazmer, D. O. (2016). Injection Mold Design Engineering: Second Edition. Carl Hanser Verlag GmbH.

Pham, D. T., & Dimov, S. S. (2021). Rapid Tooling: Technologies and Industrial Applications. Springer-Verlag London.

Groover, M. P. (2020). Fundamentals of Modern Manufacturing: Materials, Processes, and Systems (Seventh Edition). John Wiley & Sons.

Hague, R., Campbell, I., & Dickens, P. (2019). Implications on Design of Rapid Manufacturing. Journal of Mechanical Engineering Science, 217(1), 25-30.

Schuh, G., Bergweiler, G., & Fiedler, F. (2020). Cost-Benefit Analysis of Modular Tooling Systems in Low-Volume Production. International Journal of Production Economics, 228, 107684.
